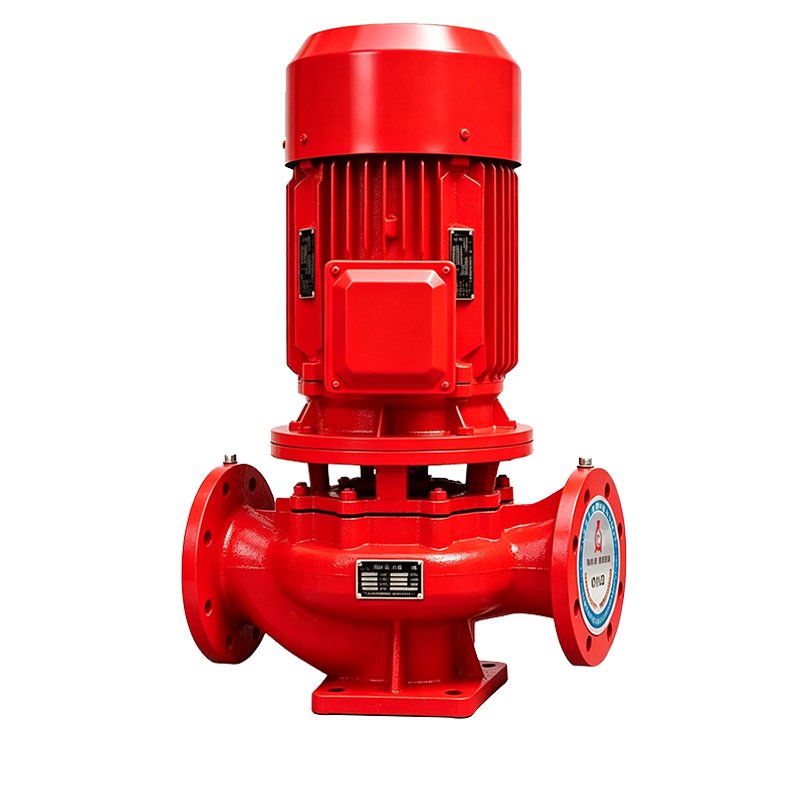

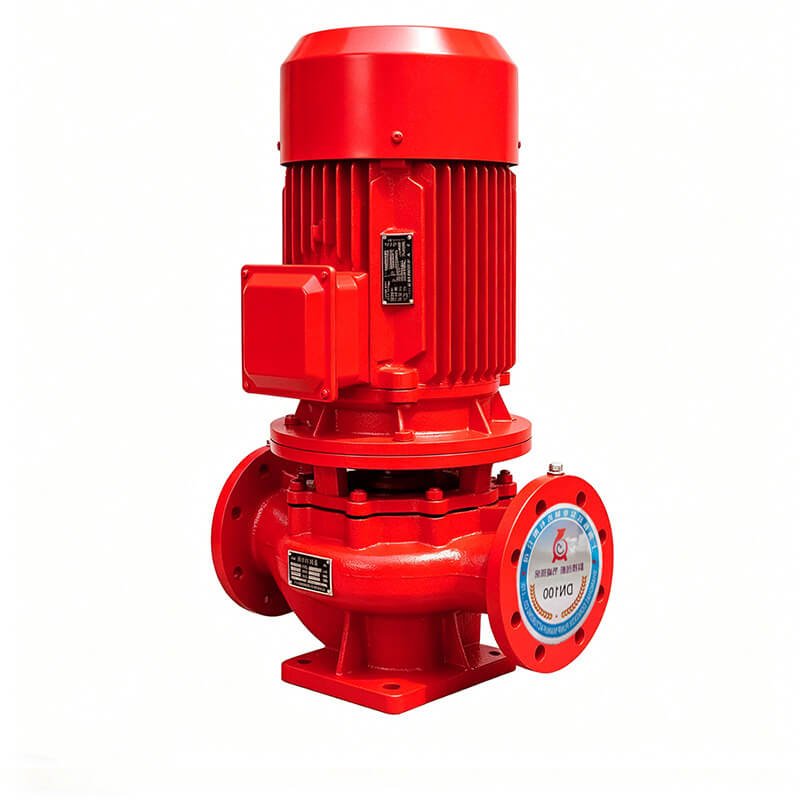

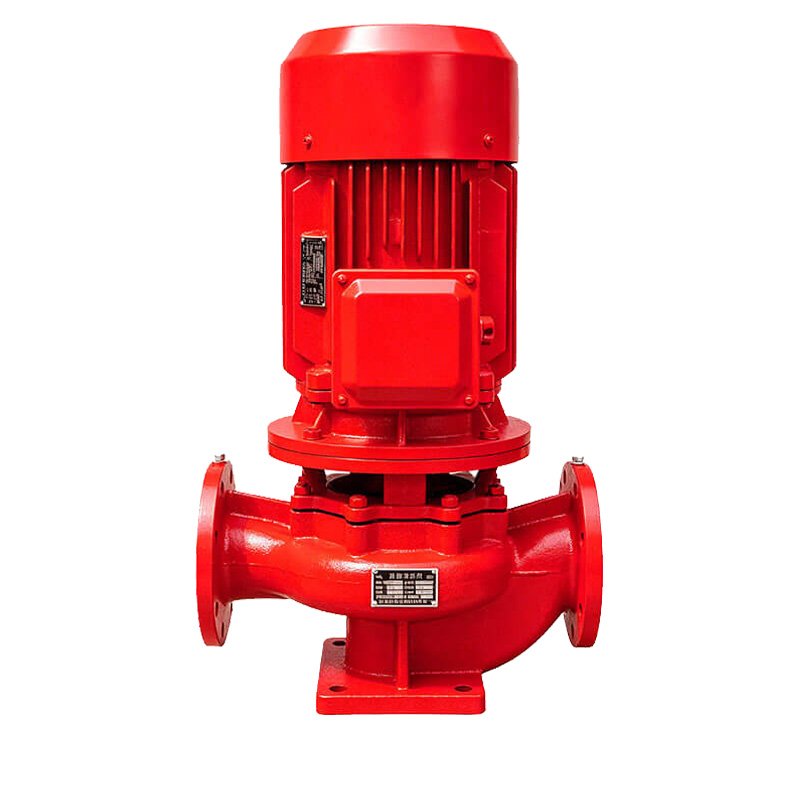

XBD Vertical Single-Stage Fire Pump
XBD Vertical Single-Stage Fire Pumps are designed for fire protection systems in commercial buildings, industrial facilities, warehouses, and water supply stations. They feature stable performance, compact structure, high efficiency, and reliable operation to ensure continuous water supply during firefighting emergencies.
Specifications
| Application | Water Treatment Solutions | Structure | Single-stage Pump |
| Max Flow Rate | 25 ~ 300mm(0.98~11.81in) | power source | Electric |
| Chemical Compatibility | Water | Impeller Material | Ductile Iron |
| Applicable temperature | 5-80°C | Connection Type | Flange Connection, Direct Coupling |
| Outlet Type | Universal Style | Material | Iron |
| motor | Three-Phase Motor | Surface Treatment | Spraying |
| warranty | 1 Year | customized support | OEM, obm, odm |
| pressure | Other | place of origin | Shanghai, wenzhou |
Description
XBD Vertical Single-Stage Fire Pump Series is designed for delivering clean water without solid particles and liquids with similar physical and chemical properties to water. It is widely used in fire protection systems for pressure boosting and water supply, and can also be applied in industrial and mining water supply and drainage systems.
The pump features a compact vertical structure, attractive appearance, stable operation, and space-saving installation. The center-of-gravity design improves running stability and extends service life.
Its inline suction and discharge structure simplifies pipeline installation and maintenance. The pump performance can be adjusted by changing the impeller diameter to meet different flow and head requirements without modifying the installation space
